934100706 | Hirschmann Test & Measurement

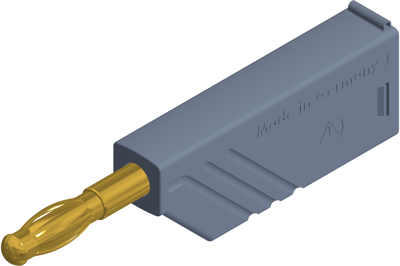

4 mm plug, screw connection, 0.5-1.5 mm², CAT O, gray, 934100706
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.0817 € *
Available: 40 pcs.
Total Price:
4.08 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0817 €
10 pcs.
3.8556 €
50 pcs.
3.6057 €
100 pcs.
3.3677 €
500 pcs.
3.1178 €
*incl. VAT plus shipping costs
Subject to prior sale
Laboratory connector, LAS N WS AU GR, HIRSCHMANN
The LAS N WS AU GR is a connector for tower construction with screw connection for leads from 0.5 mm² to 1.5 mm² and the outer diameter of the lead is max. 4.2 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| diameter | 4 mm | |
| Colour | gray | |
| Connection | screw connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.5-1.5 mm² | |
| max. Cable diameter | 4.2 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 24 A | |
| Rated category | CAT O | |
| Touch safe | No | |
| Stackable | Yes | |
| Length | 58 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
