934100103 | Hirschmann Test & Measurement

4 mm plug, screw connection, 0.5-1.5 mm², CAT O, yellow, 934100103

Order No.: 10F786
EAN: 4099889663860
MPN:
934100103
LAS N WS GE
Series: LAS N WS
934100103 Hirschmann Test & Measurement Laboratory Connectors Image 1
934100103 Hirschmann Test & Measurement Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.2729 € *
Next delivery: 68 pcs. on 2025-10-14
Available in 6 Days: 450 pcs. - if ordered today
Total Price:
2.27 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2729 €
10 pcs.
2.1420 €
50 pcs.
2.0111 €
100 pcs.
1.8802 €
500 pcs.
1.7374 €
*incl. VAT plus shipping costs
Subject to prior sale

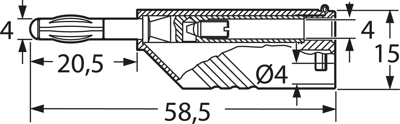

Lamellar plugs, 4.0 mm, type Hirschmann T & M LAS N WS.

Tower plug with screw terminals, for conductors from 0.5 to 1.5 mm²; Cable outer diameter: max. 4.2 mm. Plug pin: 4.0 mm, with lamella spring, not touch-proof. Rated voltage: 60 VDC. Rated current: 24 A. Contact material: nickel-plated copper beryllium. Insulating sleeve: PA. Operating temperatures: –15 to +70 °C.

Type: LAS N WS, yellow

Technical specifications
Filter Property Value
Rated Voltage 30 VAC/60 VDC
Connection screw connection
Stackable Yes
Version plug
contact surface nickel-plated
Rated category CAT O
diameter 4 mm
Touch safe No
Colour yellow
Rated current 24 A
max. Cable diameter 4.2 mm
Length 58 mm
Cable cross-section 0.5-1.5 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
RoHS conform Yes
