934099700 | Hirschmann Test & Measurement

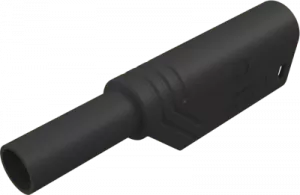

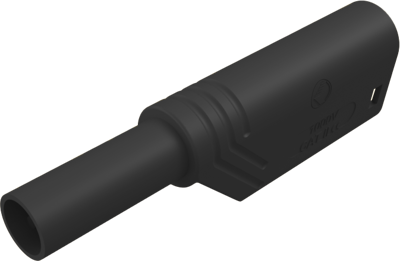

4 mm plug, screw connection, 0.5-1.5 mm², CAT II, black, 934099700
Unit Price (€ / pc.)
3.6057 € *
Available: 31 pcs.
Available in 6 Days: 150 pcs. - if ordered today
Total Price:
3.61 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6057 €
10 pcs.
3.3082 €
50 pcs.
3.1059 €
100 pcs.
2.9036 €
500 pcs.
2.7013 €
*incl. VAT plus shipping costs
Subject to prior sale
Safety connector, LAS S WS AU SW, Hirschmann Test & Measurement
Safety connector for tower construction with screw connection for leads from 0.5 mm² to 1.5 mm², outer diameter of lead max. 4.2 mm. Plug 4 mm with caged spring, rigid socket 4 mm, 1000 V-system. Simple assembly by "Click-System".
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Cable diameter | 4.2 mm | |
| Colour | black | |
| Rated current | 24 A | |
| Connection | screw connection | |
| diameter | 4 mm | |
| Length | 58.3 mm | |
| Rated Voltage | 1000 V | |
| Cable cross-section | 0.5-1.5 mm² | |
| contact surface | gold-plated | |
| Rated category | CAT II | |
| Stackable | Yes | |
| Touch safe | Yes | |
| Version | plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
| Original Packaging | Carton with 50 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
