934098104 | Hirschmann Test & Measurement

4 mm plug, screw connection, 0.5-1.5 mm², CAT III, green, 934098104

Order No.: 12F234
EAN: 4099889664324
MPN:
934098104
LAS S W GN
Series: LAS S W
934098104 Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
3.4748 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.47 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4748 €
10 pcs.
3.0583 €
50 pcs.
2.6775 €
100 pcs.
2.5704 €
1000 pcs.
2.4157 €
*incl. VAT plus shipping costs
Subject to prior sale

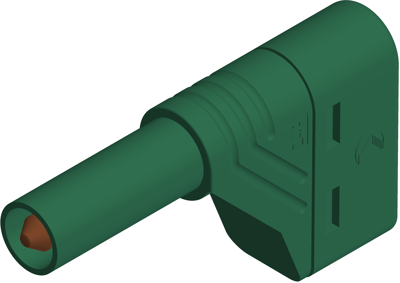

Laboratory connector, LAS S W GN, HIRSCHMANN

The LAS S W GN is a safety angled connector with screw connection for leads from 0.5 mm² to 1.5 mm² and the outer diameter of the lead is max. 4.2 mm.

Technical specifications
Filter Property Value
Rated Voltage 1000 V
Connection screw connection
Version plug
contact surface nickel-plated
Rated category CAT III
diameter 4 mm
Touch safe Yes
Colour green
Rated current 24 A
max. Cable diameter 4.2 mm
Length 46.3 mm
Cable cross-section 0.5-1.5 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
RoHS conform Yes
