934096104 | Hirschmann Test & Measurement

4 mm jack, screw connection, 0.5-1.5 mm², CAT III, green, 934096104

Order No.: 20F204
EAN: 4099889667691
MPN:
934096104
KUN S GN
Series: KUN S
934096104 Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
2.6537 € *
Available: 25 pcs.
Available in 6 Days: 200 pcs. - if ordered today
Total Price:
2.65 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6537 €
10 pcs.
2.4990 €
50 pcs.
2.3443 €
100 pcs.
2.1896 €
500 pcs.
2.0349 €
*incl. VAT plus shipping costs
Subject to prior sale

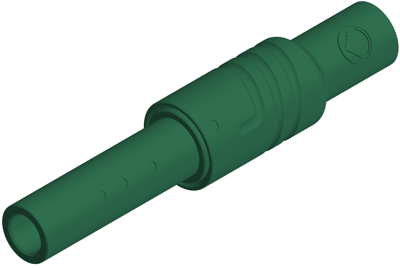

Laboratory connector, KUN S GN, HIRSCHMANN

The KUN S GN is a safety coupling with screw connection for leads from 0.5 mm² to 1.5 mm² and the outer diameter of the lead is max. 4,2 mm.

Technical specifications
Filter Property Value
Rated Voltage 1000 V
Connection screw connection
Version jack
contact surface nickel-plated
Rated category CAT III
diameter 4 mm
Touch safe Yes
Colour green
Rated current 24 A
max. Cable diameter 4.2 mm
Length 48.2 mm
Cable cross-section 0.5-1.5 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
RoHS conform Yes
