931804703 | Hirschmann Test & Measurement
4 mm jack, solder connection, 2.5 mm², CAT O, yellow, 931804703
Unit Price (€ / pc.)
2.3205 € *
Available: 39 pcs.
Available in 6 Days: 450 pcs. - if ordered today
Total Price:
2.32 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3205 €
50 pcs.
1.9754 €
100 pcs.
1.9040 €
500 pcs.
1.7969 €
1000 pcs.
1.6303 €
*incl. VAT plus shipping costs
Subject to prior sale

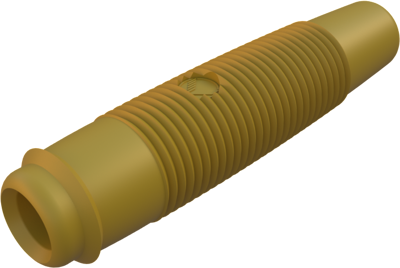

Jacks, 4.0 mm, type Hirschmann T & M KUN 30.
For 4.0 mm plug, with step-on-proof flexible insulating sleeve, solder terminals up to 2.5 mm²; Contact material: gold-plated brass. Rated voltage: 60 VDC. Rated current: 16 A. Operating temperatures: - 25 to +70 °C.
Gold-plated.
Type: KUN 30 Au, yellow
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | yellow | |
| Rated current | 16 A | |
| Connection | solder connection | |
| diameter | 4 mm | |
| Length | 48 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Cable cross-section | 2.5 mm² | |
| contact surface | gold-plated | |
| Rated category | CAT O | |
| Version | jack |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
| Original Packaging | Carton with 50 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
