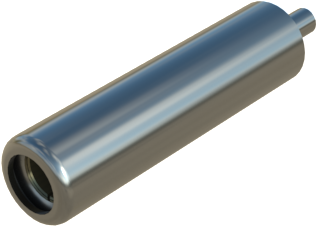

931337000 | Hirschmann Test & Measurement
2 mm socket, solder connection, mounting Ø 4 mm, CAT O, silver, 931337000
Unit Price (€ / pc.)
0.9401 € *
Available: 1,033 pcs.
Available in 6 Days: 2,200 pcs. - if ordered today
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9401 €
10 pcs.
0.8925 €
200 pcs.
0.8330 €
1000 pcs.
0.7497 €
2000 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale
Panel jacks, 2.0 mm, type Hirschmann T & M MBU 2.
For 2.0 mm plugs, miniature version, for PCB mounting; Socket body: tinned brass. Rated voltage: 60 VDC. Rated current: 6.0 A. Contact resistance: 6.0 mohm. Operating temperatures: –20 to +60 °C.
Type: MBU 2, panel jack
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket | |
| diameter | 2 mm | |
| Colour | silver | |
| Connection | solder connection | |
| contact surface | gold-plated | |
| Installation diameter | 4 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 6 A | |
| Rated category | CAT O | |
| Touch safe | No | |
| Length | 18 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
