930729101 | Hirschmann Test & Measurement

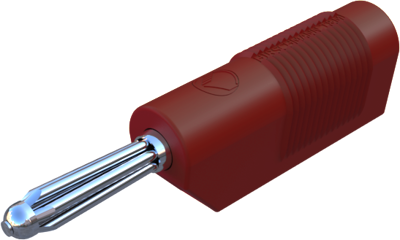

4 mm plug, screw connection, 2.5 mm², CAT O, red, 930729101

Order No.: 15F306
EAN: 4099889665024
MPN:
930729101
BSB 20 K RT
Series: BSB 20 K
930729101 Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.9278 € *
Available: 407 pcs.
Total Price:
1.93 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9278 €
25 pcs.
1.6303 €
100 pcs.
1.4994 €
500 pcs.
1.3923 €
1000 pcs.
1.2852 €
*incl. VAT plus shipping costs
Subject to prior sale

Multiple spring wire plugs, 4.0 mm, type Hirschmann T & M BSB 20 K.

With longitudinal or transverse cable inlet. For tower stacking. With screw terminals for up to 2.5 mm²; Cable outer diameter: max. 4.0 mm. Contact material: nickel-plated brass. Rated voltage: 60 VDC. Rated current: 30 A. Operating temperatures: –25 to +100 °C.

Type: BSB 20 K, red

Technical specifications
Filter Property Value
Rated Voltage 30 VAC/60 VDC
contact surface nickel-plated
Rated category CAT O
Cable cross-section 2.5 mm²
Version plug
Stackable Yes
Rated current 30 A
Colour red
Touch safe No
diameter 4 mm
Length 56 mm
Connection screw connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Sustainable Yes
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
