930435106 | Hirschmann Test & Measurement
4 mm 27440313, screw connection, 2.5 mm², CAT O, gray, 930435106
Unit Price (€ / pc.)
   2.0230 €  *
   Available: 45 pcs.
 Total Price:
  2.02 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 2.0230 €
 50 pcs.
 1.7017 €
 100 pcs.
 1.6422 €
 500 pcs.
 1.5708 €
 1000 pcs.
 1.4161 €
  *incl. VAT plus shipping costs
  Subject to prior sale

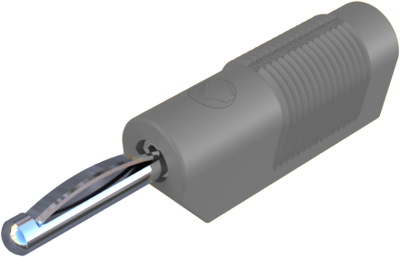

 Plug, VSB 20 GR, Hirschmann Test & Measurement
Fully mating connector with cable gland and 4 mm socket for onward connection capability. Screw connection up to maximum cable crosssection of 2.5 mm² and external diameter of 4 mm. Nickel-plated brass contact material.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| diameter | 4 mm | |
| Length | 55 mm | |
| contact surface | nickel-plated | |
| Colour | gray | |
| Rated category | CAT O | |
| Rated current | 30 A | |
| Connection | screw connection | |
| Version | plug | |
| Rated Voltage | 30 VAC/60 VDC | |
| Cable cross-section | 2.5 mm² |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
| Country of origin | DE |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
