930320100 | Hirschmann Test & Measurement

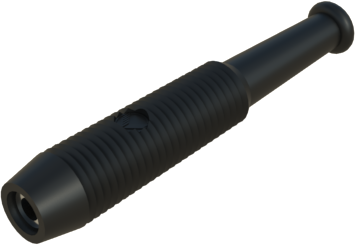

2 mm jack, solder connection, 0.5 mm², black, 930320100
Unit Price (€ / pc.)
1.2138 € *
Available: 81 pcs.
Next delivery: 600 pcs. on 2025-09-09
Available in 6 Days: 500 pcs. - if ordered today
Total Price:
1.21 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2138 €
10 pcs.
0.9758 €
100 pcs.
0.9163 €
500 pcs.
0.7735 €
1000 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale
Jacks, 2.0 mm, type Hirschmann T & M MKU 1.
For 2.0 mm plugs. Solder terminals, flexible and step-on proof insulation sleeve. Contact spring made of tinned copper beryllium; Rated voltage: 60 VDC. Rated current: 6.0 A. Operating temperatures: –20 to +60 °C.
Type: MKU 1, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 6 A | |
| Version | jack | |
| Colour | black | |
| Touch safe | No | |
| diameter | 2 mm | |
| contact surface | tin-plated | |
| Length | 39 mm | |
| Connection | solder connection | |
| Rated Voltage | 30 VAC/60 VDC | |
| Cable cross-section | 0.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Carton with 100 pieces |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
