930312000 | Hirschmann Test & Measurement
2 mm socket, solder connection, mounting Ø 5 mm, CAT O, silver, 930312000
Unit Price (€ / pc.)
1.2019 € *
Available: 46 pcs.
Available in 6 Days: 1,000 pcs. - if ordered today
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2019 €
10 pcs.
1.1186 €
100 pcs.
1.0234 €
200 pcs.
0.9639 €
1000 pcs.
0.9044 €
*incl. VAT plus shipping costs
Subject to prior sale

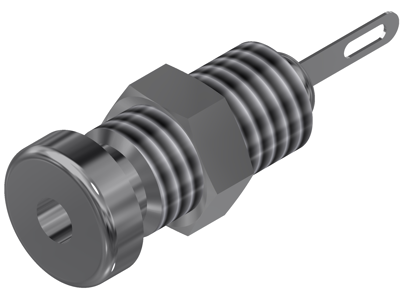

Panel jacks, 2.0 mm, type Hirschmann T & M MBU 1.
For 2.0 mm plugs, bright, miniature version, solder connection; Socket body: nickel-plated brass. Contact spring made of tinned copper beryllium. Rated voltage: 60 VDC. Rated current: 6.0 A. Contact resistance: 6.0 mohm. Operating temperatures: –20 to +60 °C.
Type: MBU 1, panel jack
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 30 VAC/60 VDC | |
| Length | 20 mm | |
| Colour | silver | |
| Installation diameter | 5 mm | |
| diameter | 2 mm | |
| Connection | solder connection | |
| contact surface | tin-plated | |
| Touch safe | No | |
| Version | socket | |
| Rated current | 6 A | |
| Rated category | CAT O |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
