930189100 | Hirschmann Test & Measurement
4 mm socket, screw connection, 1.5 mm², CAT O, black, 930189100
Unit Price (€ / pc.)
1.3566 € *
Available: 180 pcs.
Next delivery: 300 pcs. on 2025-11-11
Available in 6 Days: 2,000 pcs. - if ordered today
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3566 €
25 pcs.
1.1543 €
100 pcs.
1.0710 €
500 pcs.
1.0234 €
1000 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale

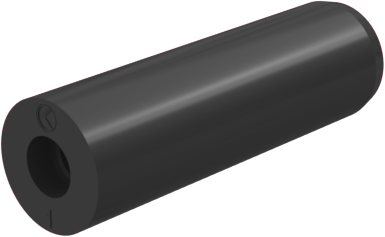

Jacks, 4.0 mm, type Hirschmann T & M KUN 10.
For 4.0 mm plugs. With screw terminals, up to 1.5 mm²; Insulation: PS. Contact material: tinned brass. Rated voltage: 60 VDC. Rated current: 16 A. Operating temperatures: –25 to +70 °C.
Type: KUN 10, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Rated current | 16 A | |
| Connection | screw connection | |
| diameter | 4 mm | |
| Length | 36 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Cable cross-section | 1.5 mm² | |
| contact surface | tin-plated | |
| Rated category | CAT O | |
| Version | socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
| Original Packaging | Carton with 100 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
