930177000 | Hirschmann Test & Measurement

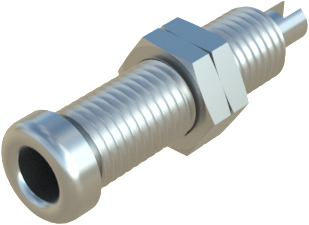

4 mm socket, screw connection, mounting Ø 6 mm, CAT O, silver, 930177000

Order No.: 25F280
EAN: 4099889672466
MPN:
930177000
BU 20
Series: BU 20
930177000 Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.9992 € *
Available: 2,194 pcs.
Available in 6 Days: 600 pcs. - if ordered today
Total Price:
2.00 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9992 €
10 pcs.
1.6779 €
200 pcs.
1.4280 €
600 pcs.
1.3685 €
1000 pcs.
1.3090 €
*incl. VAT plus shipping costs
Subject to prior sale

Panel jacks, 4.0 mm, type Hirschmann T & M BU.

For 4.0 mm plugs, bright, solder connection; Contact type: female, not spring loaded. Contact material: nickel-plated brass. Rated voltage: 60 VDC. Rated current: 16 A. Contact resistance: 5.0 mohm. Operating temperatures: - 25 to +100 °C.

Technical attributes (type, dimensions a/b, contact finish): BU 20, a 20/b 27 mm, nickel - plated

Technical specifications
Filter Property Value
Installation diameter 6 mm
Rated Voltage 30 VAC/60 VDC
Connection screw connection
Version socket
contact surface nickel-plated
Rated category CAT O
diameter 4 mm
Touch safe No
Colour silver
Rated current 16 A
Length 27 mm
Logistics
Property Value
Country of origin DE
Original Packaging Carton with 200 pieces
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
Sustainable Yes
RoHS conform Yes
