930175701 | Hirschmann Test & Measurement

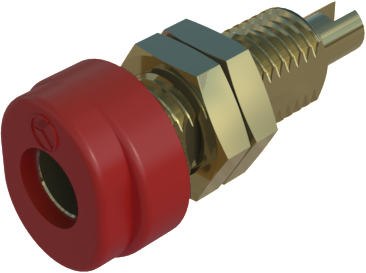

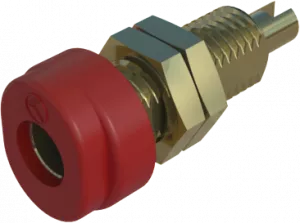

4 mm socket, screw connection, mounting Ø 6 mm, CAT O, red, 930175701
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.7251 € *
Available in 6 Days: 600 pcs. - if ordered today
Total Price:
2.73 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7251 €
10 pcs.
2.5942 €
100 pcs.
2.3205 €
200 pcs.
2.1777 €
600 pcs.
2.0468 €
*incl. VAT plus shipping costs
Subject to prior sale
Panel jacks, 4.0 mm, type Hirschmann T & M BUG 10/BUG 10 Au.
For 4.0 mm plugs, oval insulating head, solder terminals and M6 thread; Contact material: tinned or gold plated zinc die-cast. Housing material: PA. Rated voltage: 30 VAC/60 VDC. Rated current: 16 A. Operating temperatures: –25 to +85 °C.
gold plated zinc die-cast.
Type: MBI 10 Au, red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket | |
| diameter | 4 mm | |
| Colour | red | |
| Connection | screw connection | |
| contact surface | gold-plated | |
| Installation diameter | 6 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 16 A | |
| Rated category | CAT O | |
| Touch safe | No | |
| Length | 23 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
| Original Packaging | Carton with 200 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
