930166707 | Hirschmann Test & Measurement

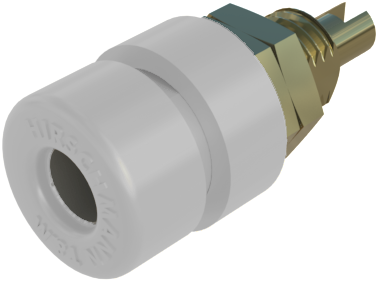

4 mm socket, screw connection, mounting Ø 8 mm, CAT O, white, 930166707

Order No.: 25F169
EAN: 4099889671438
MPN:
930166707
BIL 30 WS AU
Series: BIL 30 Au
930166707 Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
3.0940 € *
Available: 184 pcs.
Available in 6 Days: 200 pcs. - if ordered today
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0940 €
50 pcs.
2.7132 €
200 pcs.
2.3919 €
1000 pcs.
2.2491 €
2000 pcs.
2.0468 €
*incl. VAT plus shipping costs
Subject to prior sale

Panel jacks, 4.0 mm, type Hirschmann T & M BIL.

For 4.0 mm plugs, with solder terminals, insulating head and insulating ring for switchboard mounting;Contact type: female, not spring loaded. Contact material: gold plated zinc die-cast. Rated voltage: 30 VAC/60 VDC. Rated current: 32 A. Contact resistance: 3.5 mohm. Operating temperatures: - 25 to +85 °C.

For mounting in panels with thickness up to 4.0 mm, type BIL 30.

Technical attributes (type, housing color, contact finish): BIL 30 Au, white, gold plated zinc die-cast

Technical specifications
Filter Property Value
diameter 4 mm
Length 23 mm
contact surface gold-plated
Colour white
Rated category CAT O
Installation diameter 8 mm
Rated current 32 A
Connection screw connection
Touch safe No
Version socket
Rated Voltage 30 VAC/60 VDC
Logistics
Property Value
Customs tariff number 85366990
Original Packaging Carton with 200 pieces
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
