PKI 10 A GR AU | Hirschmann Test & Measurement

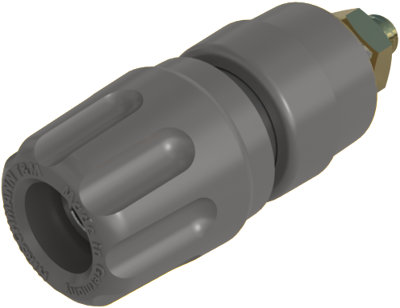

Pole terminal, 4 mm, gray, 30 VAC/60 VDC, 35 A, M4 threaded bolt, gold-plated, PKI 10 A GR AU

Order No.: 25F549
EAN: 4099889680409
MPN:
PKI 10 A GR AU
930 103-706
Series: PKI 10 A Au
PKI 10 A GR AU Hirschmann Test & Measurement Binding Posts
Image may differ
Unit Price (€ / pc.)
6.1642 € *
Available: 96 pcs.
Total Price:
6.16 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1642 €
10 pcs.
5.4145 €
100 pcs.
4.7600 €
500 pcs.
4.5696 €
1000 pcs.
4.2602 €
*incl. VAT plus shipping costs
Subject to prior sale

Pole terminal, PKI 10 A GR AU, Hirschmann Test & Measurement

Pole terminal with claw edge and captive insulating head and insulating rings. Threaded bolt with 4 mm diameter made of brass gold-plated with 2 mm diameter cross hole. For insulated, twist-proof installation in equipment chassis and control panels up to 2 mm wall thickness.

Technical specifications
Filter Property Value
diameter 4 mm
Colour gray
Rated Voltage 30 VAC/60 VDC
Rated current 35 A
Installation diameter 8 mm
Connection M4 threaded bolt
contact surface gold-plated
Length 41.5 mm
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Original Packaging Carton with 100 pieces
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Sustainable Yes
