MPK 1 RT | Hirschmann Test & Measurement

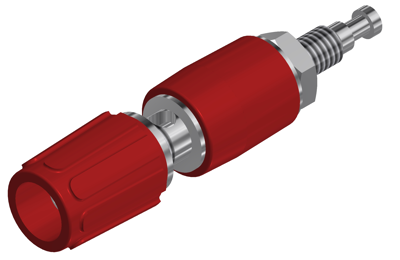

Pole terminal, 2 mm, red, 30 VAC/60 VDC, 6 A, solder connection, gold-plated, MPK 1 RT

Order No.: 25F651
EAN: 4099889680775
MPN:
MPK 1 RT
930 268-101
Series: MPK 1
MPK 1 RT Hirschmann Test & Measurement Binding Posts
Image may differ
Unit Price (€ / pc.)
5.1051 € *
Available: 27 pcs.
Available in 6 Days: 200 pcs. - if ordered today
Total Price:
5.11 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1051 €
10 pcs.
4.5101 €
50 pcs.
3.9389 €
100 pcs.
3.7961 €
500 pcs.
3.5462 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature pole, MPK 1 RT, Hirschmann Test & Measurement

Miniature pole terminal with 2 mm diameter, cross hole, insulated, contact spring made of copper beryllium, gold plated, threaded bolt made of brass tin plated with solder connection. Suitable for installation in device chassis and control panels up to max. 3.5 mm wall thickness.

Technical specifications
diameter 2 mm
Colour red
Rated Voltage 30 VAC/60 VDC
Rated current 6 A
Installation diameter 2.1 mm
Connection solder connection
contact surface gold-plated
Length 35 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Carton with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
