930268100 | Hirschmann Test & Measurement
Pole terminal, 2 mm, black, 30 VAC/60 VDC, 6 A, solder connection, gold-plated, 930268100
Unit Price (€ / pc.)
3.8437 € *
Available: 8 pcs.
Total Price:
3.84 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8437 €
10 pcs.
3.6890 €
50 pcs.
3.4510 €
100 pcs.
3.2130 €
500 pcs.
2.9750 €
*incl. VAT plus shipping costs
Subject to prior sale

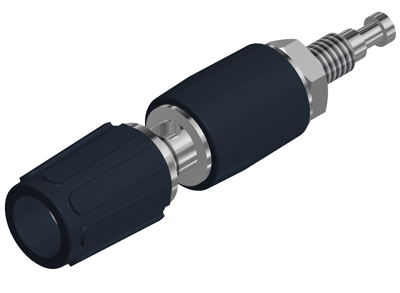

Miniature pole, MPK 1 SW, Hirschmann Test & Measurement
Miniature pole terminal with 2 mm diameter, cross hole, insulated, contact spring made of copper beryllium, gold plated, threaded bolt made of brass tin plated with solder connection. Suitable for installation in device chassis and control panels up to max. 3.5 mm wall thickness.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 2 mm | |
| Colour | black | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 6 A | |
| Installation diameter | 2.1 mm | |
| Connection | solder connection | |
| contact surface | gold-plated | |
| Length | 35 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 100 pieces |
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
