KLEPS 60 SW | Hirschmann Test & Measurement
Clamp test probe, black, max. 4 mm, L 148 mm, CAT O, socket 4 mm, KLEPS 60 SW
Unit Price (€ / pc.)
7.7945 € *
Available: 7 pcs.
Available in 6 Days: 40 pcs. - if ordered today
Total Price:
7.79 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7945 €
10 pcs.
6.8544 €
100 pcs.
6.0214 €
250 pcs.
5.7953 €
1000 pcs.
5.4145 €
*incl. VAT plus shipping costs
Subject to prior sale
Clamp test probes, KLEPS 60 SW, Hirschmann Test & Measurement

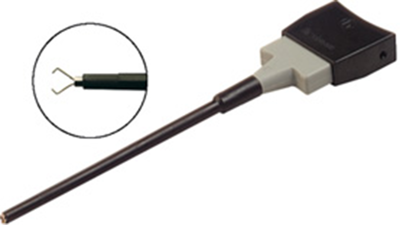

The KLEPS 60 SW is a clamp-type test probe with rotating grip jaws and flexible shaft. The special form of the grip jaws permits clamping of pins and wires up to a maximum of 4 mm diameter.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 4 mm | |
| Connection | socket 4 mm | |
| Colour | black | |
| Contact material | spring steel | |
| contact surface | nickel-plated | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 4 A | |

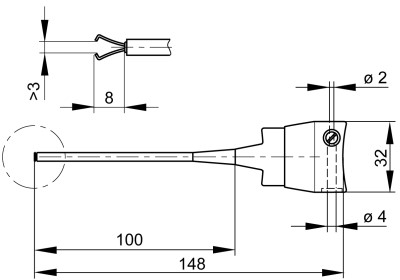

| Length | 148 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
