KLEPS 2 BU RT | Hirschmann Test & Measurement

Miniature clamp test probe, red, max. 2 mm, L 57.5 mm, CAT O, socket 2 mm, KLEPS 2 BU RT

Order No.: 35F2232
EAN: 4099889682984
MPN:
KLEPS 2 BU RT
973 501-101
Series: KLEPS 2 BU

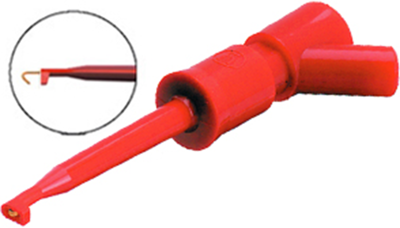

KLEPS 2 BU RT Hirschmann Test & Measurement Aligator Clips Image 1
KLEPS 2 BU RT Hirschmann Test & Measurement Aligator Clips Image 2
Image may differ
Unit Price (€ / pc.)
5.7596 € *
Available in 6 Days: 820 pcs. - if ordered today
Total Price:
5.76 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7596 €
10 pcs.
5.0575 €
100 pcs.
4.4625 €
250 pcs.
4.2721 €
1000 pcs.
3.9865 €
*incl. VAT plus shipping costs
Subject to prior sale

Clamp test probes, KLEPS 2 BU RT, Hirschmann Test & Measurement

The KLEPS 2 BU RT is a miniature clamp-type test probe with 2 mm diameter socket connection and gold-plated copper beryllium contact spring.This product is suitable for connection to wrap posts up to a maximum

Technical specifications
Filter Property Value
clamping force range max. 2 mm
Connection socket 2 mm
Colour red
Contact material spring bronze
contact surface gold-plated
Rated category CAT O
Rated Voltage 30 VAC/60 VDC
Rated current 6 A
Length 57.5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85369095
Original Packaging Carton with 10 pieces
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
