932146101 | Hirschmann Test & Measurement
Alligator clip, red, max. 9.5 mm, L 80.5 mm, CAT O, socket 4 mm, 932146101
Unit Price (€ / pc.)
2.3324 € *
Available: 146 pcs.
Available in 6 Days: 2,580 pcs. - if ordered today
Total Price:
2.33 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3324 €
20 pcs.
2.2015 €
100 pcs.
2.0825 €
500 pcs.
1.9516 €
1000 pcs.
1.8207 €
*incl. VAT plus shipping costs
Subject to prior sale

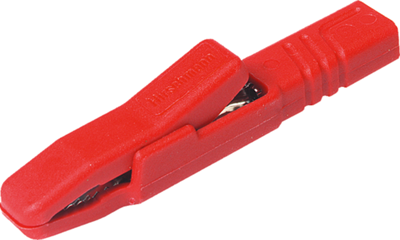

Aligator clip, AK 2 S RT, Hirschmann Test & Measurement
The AK 2 S RTis a high strength insulated aligator clip with clamping range up to 9.5 mm bolt diameter. The flat part of the jaws (fine wire section) allows even the finest wires to be clamped.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 9.5 mm | |
| Connection | socket 4 mm | |
| Colour | red | |
| Contact material | brass | |
| contact surface | nickel-plated | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 25 A | |

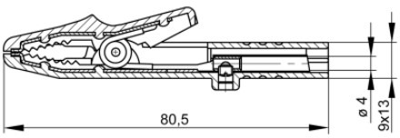

| Length | 80.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 20 pieces |
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
