AGF 30 | Hirschmann Test & Measurement

Alligator clip, silver, max. 10 mm, L 49 mm, CAT O, socket 4 mm, AGF 30

Order No.: 30F270
EAN: 4099889682137
MPN:
AGF 30
930 122-000
Series: AGF

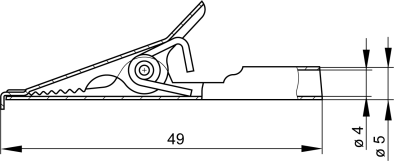

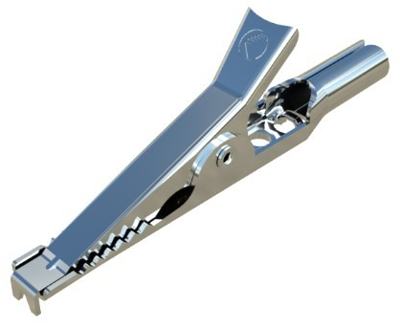

AGF 30 Hirschmann Test & Measurement Aligator Clips Image 1
AGF 30 Hirschmann Test & Measurement Aligator Clips Image 2
Image may differ
Unit Price (€ / pc.)
1.5946 € *
Available: 515 pcs.
Available in 6 Days: 1,600 pcs. - if ordered today
Total Price:
1.59 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5946 €
10 pcs.
1.4042 €
100 pcs.
1.2257 €
500 pcs.
1.1781 €
1000 pcs.
1.0829 €
*incl. VAT plus shipping costs
Subject to prior sale

Aligator clip, AGF 30, Hirschmann Test & Measurement

The AGF 30 is a stainless steel alligator clip. This product has a special shape that allows clamping of both extremely fine and thick wires, with maximum bolt diameter 10 mm. Connection type: 4 mm diameter socket rust-proof, acid-proof and non-magnetic.

Technical specifications
clamping force range max. 10 mm
Connection socket 4 mm
Colour silver
Contact material stainless steel
contact surface stainless steel
Rated category CAT O
Rated Voltage 30 VAC/60 VDC
Rated current 4 A
Length 49 mm
Logistics
Country of origin DE
Customs tariff number 85369095
Original Packaging Carton with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
