973889100 | Hirschmann Test & Measurement
Alligator clip, black, max. 6 mm, L 56 mm, CAT II, socket 4 mm, 973889100
Unit Price (€ / pc.)
2.4514 € *
Available: 91 pcs.
Available in 6 Days: 900 pcs. - if ordered today
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4514 €
10 pcs.
2.3800 €
100 pcs.
2.2491 €
500 pcs.
2.0349 €
1000 pcs.
1.9754 €
*incl. VAT plus shipping costs
Subject to prior sale

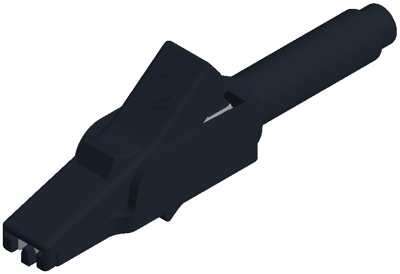

Aligator clip, MA 260 SH SW, Hirschmann Test & Measurement
The MA 260 SH SW is a contact-protected miniature alligator clip with high strength insulation and nickel-plated bronze jaws and clamping range up to a bolt diameter of 6 mm. The part of the jaws (fine wire section) allows a secure contect to be made when clamping even the thinner wire.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 6 mm | |
| Connection | socket 4 mm | |
| Colour | black | |
| Contact material | bronze | |
| contact surface | nickel-plated | |
| Rated category | CAT II | |
| Rated Voltage | 300 V | |
| Rated current | 15 A | |
| Length | 56 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Original Packaging | Carton with 50 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
