973592101 | Hirschmann Test & Measurement
Miniature clamp test probe, red, max. 3.5 mm, L 52 mm, CAT O, pin 0.64 mm, 973592101
Unit Price (€ / pc.)
4.5339 € *
Available: 16 pcs.
Available in 6 Days: 450 pcs. - if ordered today
Total Price:
4.53 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5339 €
10 pcs.
4.2721 €
50 pcs.
4.0222 €
100 pcs.
3.7723 €
500 pcs.
3.5224 €
*incl. VAT plus shipping costs
Subject to prior sale

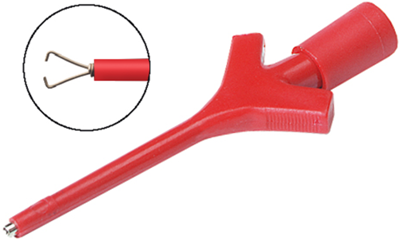

Clamp test probes, KLEPS 3 ST RT, Hirschmann Test & Measurement
The KLEPS 3 ST RT is a miniature clamp-type test probe with rotating grip jaws. Th is product is suitable for very thin wires and densely packed contacts.

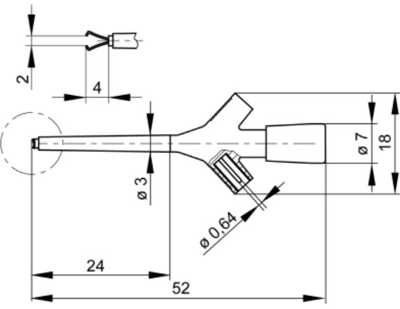

Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 3.5 mm | |
| Connection | pin 0.64 mm | |
| Colour | red | |
| Contact material | spring steel | |
| contact surface | nickel-plated | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 2 A | |
| Length | 52 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Original Packaging | Carton with 10 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
