973528101 | Hirschmann Test & Measurement

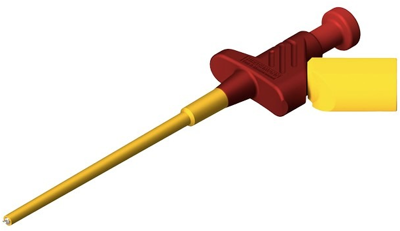

Clamp test probe, red, max. 4 mm, L 160.6 mm, CAT O, socket 4 mm, 973528101
Unit Price (€ / pc.)
10.0912 € *
Available: 14 pcs.
Available in 6 Days: 370 pcs. - if ordered today
Total Price:
10.09 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0912 €
10 pcs.
9.0797 €
50 pcs.
8.5799 €
100 pcs.
8.0682 €
500 pcs.
7.0686 €
*incl. VAT plus shipping costs
Subject to prior sale
Clamp test probes, KLEPS 250 RT, Hirschmann Test & Measurement
The KLEPS 250 RT is a contact-protected clamp-type test probe with rotating grip jaws and flexible shaft. The grip jaws allows clamping of pins and wires up to a maximum of 4 mm diameter.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 4 mm | |
| Connection | socket 4 mm | |
| Colour | red | |
| Contact material | spring steel | |
| contact surface | nickel-plated | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 4 A | |
| Length | 160.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
