973528100 | Hirschmann Test & Measurement
Clamp test probe, black, max. 4 mm, L 160.6 mm, CAT O, socket 4 mm, 973528100
Unit Price (€ / pc.)
10.7457 € *
Available: 18 pcs.
Next delivery: 60 pcs. on 2025-10-14
Available in 6 Days: 30 pcs. - if ordered today
Total Price:
10.75 € *
Price list
Quantity
Price per unit*
1 pcs.
10.7457 €
10 pcs.
9.4605 €
50 pcs.
8.8060 €
100 pcs.
8.4252 €
500 pcs.
7.9849 €
*incl. VAT plus shipping costs
Subject to prior sale

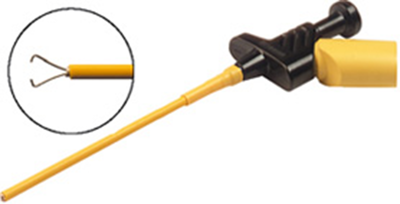

Clamp test probes, KLEPS 250 SW, Hirschmann Test & Measurement
The KLEPS 250 SW is a contact-protected clamp-type test probe with rotating grip jaws and flexible shaft. The grip jaws allows clamping of pins and wires up to a maximum of 4 mm diameter.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 4 mm | |
| Connection | socket 4 mm | |
| Colour | black | |
| Contact material | spring steel | |
| contact surface | nickel-plated | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 4 A | |

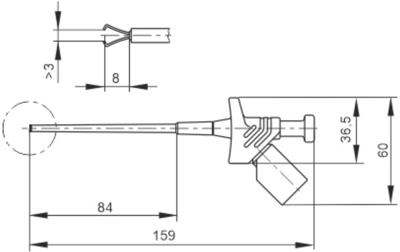

| Length | 160.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
