973501101 | Hirschmann Test & Measurement
Miniature clamp test probe, red, max. 2 mm, L 57.5 mm, CAT O, socket 2 mm, 973501101
Unit Price (€ / pc.)
4.8076 € *
Available: 24 pcs.
Available in 6 Days: 840 pcs. - if ordered today
Total Price:
4.81 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8076 €
10 pcs.
4.5458 €
50 pcs.
4.2721 €
100 pcs.
4.0103 €
500 pcs.
3.7366 €
*incl. VAT plus shipping costs
Subject to prior sale

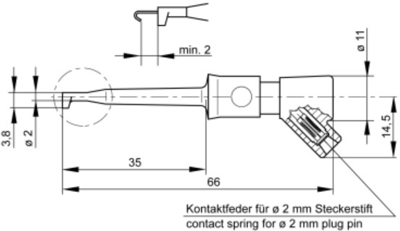

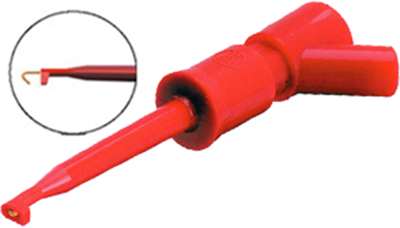

Clamp test probes, KLEPS 2 BU RT, Hirschmann Test & Measurement
The KLEPS 2 BU RT is a miniature clamp-type test probe with 2 mm diameter socket connection and gold-plated copper beryllium contact spring.This product is suitable for connection to wrap posts up to a maximum
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 2 mm | |
| Connection | socket 2 mm | |
| Colour | red | |
| Contact material | spring bronze | |
| contact surface | gold-plated | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 6 A | |
| Length | 57.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Original Packaging | Carton with 10 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
