973053101 | Hirschmann Test & Measurement
Clamp test probe, red, max. 4 mm, L 148 mm, CAT O, socket 4 mm, 973053101
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
6.6283 € *
Available: 1 pcs.
Available in 6 Days: 80 pcs. - if ordered today
Total Price:
6.63 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6283 €
10 pcs.
5.9619 €
50 pcs.
5.6287 €
100 pcs.
5.3074 €
500 pcs.
4.6410 €
*incl. VAT plus shipping costs
Subject to prior sale

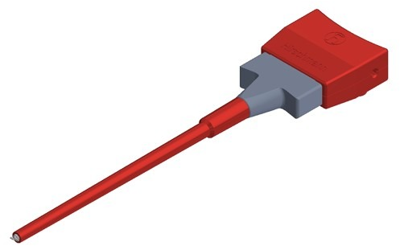

Clamp test probes, KLEPS 60 RT, Hirschmann Test & Measurement
The KLEPS 60 RT is a clamp-type test probe with rotating grip jaws and flexible shaft. The special form of the grip jaws permits clamping of pins and wires up to a maximum of 4 mm diameter.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 4 mm | |
| Connection | socket 4 mm | |
| Colour | red | |
| Contact material | spring steel | |
| contact surface | nickel-plated | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 4 A | |
| Length | 148 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
