972308101 | Hirschmann Test & Measurement
Clamp test probe, red, max. 10 mm, L 158 mm, CAT III, socket 4 mm, 972308101
Unit Price (€ / pc.)
13.6612 € *
Available: 16 pcs.
Available in 6 Days: 310 pcs. - if ordered today
Total Price:
13.66 € *
Price list
Quantity
Price per unit*
1 pcs.
13.6612 €
10 pcs.
12.8996 €
50 pcs.
12.1380 €
100 pcs.
11.3764 €
500 pcs.
10.6267 €
*incl. VAT plus shipping costs
Subject to prior sale

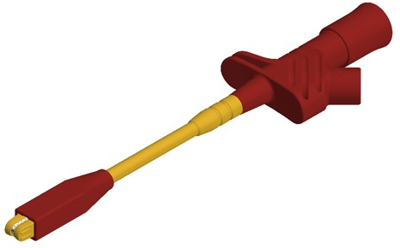

Clamp test probes, KLEPS 2800 RT, Hirschmann Test & Measurement
The KLEPS 2800 RT is a safety clamp-type test probe with insulated wide opening grip claws for contacting large measuring areas and leads with large cross-sections. This product has 4 mm brass socket connection that connects with safety measuring leads.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 10 mm | |
| Connection | socket 4 mm | |
| Colour | red | |
| Contact material | spring steel | |
| contact surface | nickel-plated | |
| Rated category | CAT III | |
| Rated Voltage | 1000 V | |
| Rated current | 20 A | |
| Length | 158 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Original Packaging | Carton with 10 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead, boric acid |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
