972307100 | Hirschmann Test & Measurement
Clamp test probe, black, max. 3.5 mm, L 162 mm, CAT O, socket 4 mm, 972307100
Unit Price (€ / pc.)
11.6263 € *
Available: 7 pcs.
Available in 6 Days: 410 pcs. - if ordered today
Total Price:
11.63 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6263 €
10 pcs.
10.9718 €
50 pcs.
10.3292 €
100 pcs.
9.6866 €
500 pcs.
9.0440 €
*incl. VAT plus shipping costs
Subject to prior sale

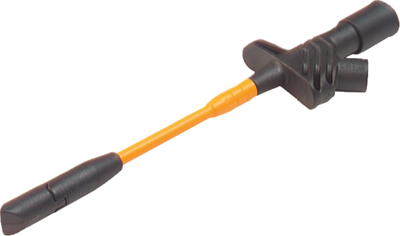

Clamp test probes, KLEPS 2700 SW, Hirschmann Test & Measurement

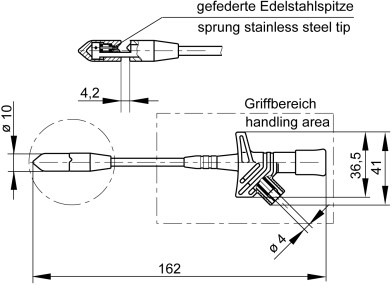

The KLEPS 2700 SW is a clamp-type test probe with split test clamp. The sprung stainless steel tip can contact insulated leads with cross-sections between 0.25 mm² and 1.5 mm² (3.5 mm diameter) without the need to strip them.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 3.5 mm | |
| Connection | socket 4 mm | |
| Colour | black | |
| Contact material | stainless steel | |
| contact surface | nickel-plated | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 10 A | |
| Length | 162 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
