972306101 | Hirschmann Test & Measurement
Clamp test probe, red, max. 4 mm, L 162 mm, CAT II, socket 4 mm, 972306101
Unit Price (€ / pc.)
8.0325 € *
Available: 27 pcs.
Available in 6 Days: 630 pcs. - if ordered today
Total Price:
8.03 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0325 €
10 pcs.
7.5922 €
50 pcs.
7.1400 €
100 pcs.
6.6997 €
500 pcs.
6.2475 €
*incl. VAT plus shipping costs
Subject to prior sale

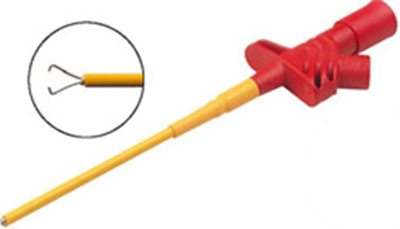

Clamp test probes, KLEPS 2600 RT, Hirschmann Test & Measurement
The KLEPS 2600 RT is a safety clamp-type test probe with rotating grip jaws and flexible shaft. Wires and pins with up to a maximum diameter of 4mm can be clamped thanks to the special form of the grip jaws.

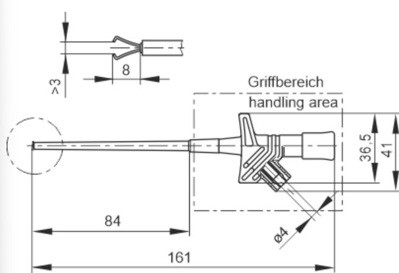

Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 4 mm | |
| Connection | socket 4 mm | |
| Colour | red | |
| Contact material | spring steel | |
| contact surface | nickel-plated | |
| Rated category | CAT II | |
| Rated Voltage | 1000 V | |
| Rated current | 4 A | |
| Length | 162 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
