932146104 | Hirschmann Test & Measurement

Alligator clip, green, max. 9.5 mm, L 80.5 mm, CAT O, socket 4 mm, 932146104

Order No.: 30F333
EAN: 4099889416626
MPN:
932146104
AK 2 S GN
Series: AK 2 S
932146104 Hirschmann Test & Measurement Aligator Clips
Image may differ
Unit Price (€ / pc.)
2.3324 € *
Available: 10 pcs.
Available in 6 Days: 140 pcs. - if ordered today
Total Price:
2.33 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3324 €
20 pcs.
2.2015 €
100 pcs.
2.0825 €
500 pcs.
1.9516 €
1000 pcs.
1.8207 €
*incl. VAT plus shipping costs
Subject to prior sale

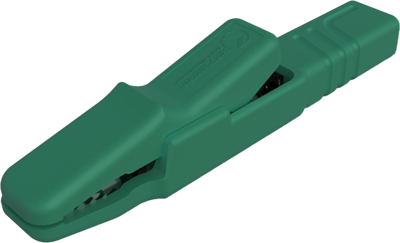

Alligator clip, AK 2 S GN, Hirschmann T&M

Insulated, high strength alligator clip. Clamping range up to 9.5 mm bolt diameter. The flat part of the jaws (fine wire section) allows even the finest wires to be clamped. 4 mm diameter socket connection and screw connection up to 1.5 mm².

Technical specifications
Filter Property Value
clamping force range max. 9.5 mm
Connection socket 4 mm
Colour green
Contact material brass
contact surface nickel-plated
Rated category CAT O
Rated Voltage 30 VAC/60 VDC
Rated current 25 A
Length 80.5 mm
Logistics
Property Value
Original Packaging Carton with 20 pieces
Customs tariff number 85369095
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Sustainable Yes
SVHC free Yes
