932146102 | Hirschmann Test & Measurement
Alligator clip, blue, max. 9.5 mm, L 80.5 mm, CAT O, socket 4 mm, 932146102
Unit Price (€ / pc.)
2.3324 € *
Available: 9 pcs.
Available in 6 Days: 120 pcs. - if ordered today
Total Price:
2.33 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3324 €
20 pcs.
2.2015 €
100 pcs.
2.0825 €
500 pcs.
1.9516 €
1000 pcs.
1.8207 €
*incl. VAT plus shipping costs
Subject to prior sale

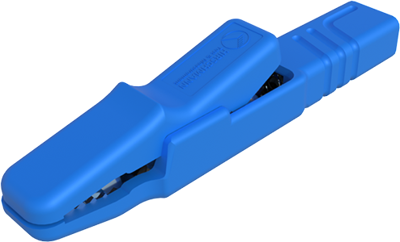

Alligator clip, AK 2 S BL, Hirschmann T&M
Insulated, high strength alligator clip. Clamping range up to 9.5 mm bolt diameter. The flat part of the jaws (fine wire section) allows even the finest wires to be clamped. 4 mm diameter socket connection and screw connection up to 1.5 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 9.5 mm | |
| Connection | socket 4 mm | |
| Colour | blue | |
| Contact material | brass | |
| contact surface | nickel-plated | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 25 A | |
| Length | 80.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
| Original Packaging | Carton with 20 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
