932146100 | Hirschmann Test & Measurement

Alligator clip, black, max. 9.5 mm, L 80.5 mm, CAT O, socket 4 mm, 932146100

Order No.: 30F330
EAN: 4099889682311
MPN:
932146100
AK 2 S SW
Series: AK 2 S

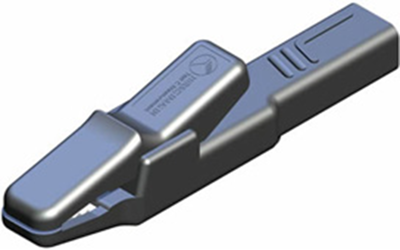

932146100 Hirschmann Test & Measurement Aligator Clips Image 1

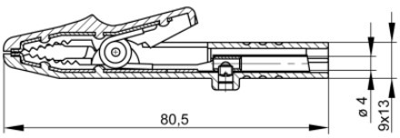

932146100 Hirschmann Test & Measurement Aligator Clips Image 2
Image may differ
Unit Price (€ / pc.)
2.3324 € *
Available: 307 pcs.
Available in 6 Days: 5,160 pcs. - if ordered today
Total Price:
2.33 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3324 €
20 pcs.
2.2015 €
100 pcs.
2.0825 €
500 pcs.
1.9516 €
1000 pcs.
1.8207 €
*incl. VAT plus shipping costs
Subject to prior sale

Aligator clip, AK 2 S SW, Hirschmann Test & Measurement

The AK 2 S SWis a high strength insulated aligator clip with clamping range up to 9.5 mm bolt diameter. The flat part of the jaws (fine wire section) allows even the finest wires to be clamped.

Technical specifications
Filter Property Value
clamping force range max. 9.5 mm
Connection socket 4 mm
Colour black
Contact material brass
contact surface nickel-plated
Rated category CAT O
Rated Voltage 30 VAC/60 VDC
Rated current 25 A
Length 80.5 mm
Logistics
Property Value
Original Packaging Carton with 20 pieces
Customs tariff number 85369095
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Sustainable Yes
SVHC free Yes
