930319104 | Hirschmann Test & Measurement

Alligator clip, green, max. 4 mm, L 41.5 mm, CAT O, socket 2 mm, 930319104

Order No.: 30F367
EAN: 4099889682748
MPN:
930319104
MA 2 VA GN
Series: MA 2 VA
930319104 Hirschmann Test & Measurement Aligator Clips Image 1
930319104 Hirschmann Test & Measurement Aligator Clips Image 2
Image may differ
Unit Price (€ / pc.)
1.7017 € *
Available: 48 pcs.
Available in 6 Days: 200 pcs. - if ordered today
Total Price:
1.70 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7017 €
50 pcs.
1.4518 €
100 pcs.
1.3923 €
500 pcs.
1.3447 €
1000 pcs.
1.2019 €
*incl. VAT plus shipping costs
Subject to prior sale

Aligator clip, MA 2 VA GN, Hirschmann Test & Measurement

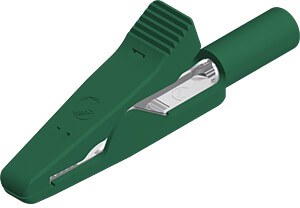

The MA 2 VA GN is a miniature alligator clip with high strength insulation and 2 mm socket connection. Jaws and spring in stainless steel. The flat part of the jaws (fine wire section) allows a secure contact to be made when clamping even the thinnest wires. This product is capable of clamping flat components (soldering eyes) and wires up to a maximum diameter of 4 mm.

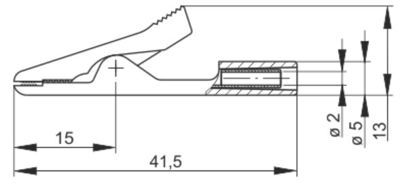

Technical specifications
Filter Property Value
Rated category CAT O
Rated current 6 A
Colour green
Contact material stainless steel
clamping force range max. 4 mm
Length 41.5 mm
Connection socket 2 mm
Rated Voltage 30 VAC/60 VDC
Logistics
Property Value
Country of origin DE
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
