930319102 | Hirschmann Test & Measurement

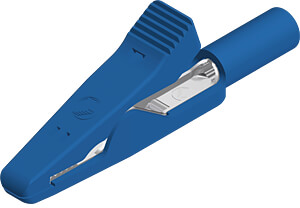

Alligator clip, blue, max. 4 mm, L 41.5 mm, CAT O, socket 2 mm, 930319102
Unit Price (€ / pc.)
1.7017 € *
Available: 49 pcs.
Available in 6 Days: 300 pcs. - if ordered today
Total Price:
1.70 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7017 €
10 pcs.
1.5827 €
50 pcs.
1.4637 €
100 pcs.
1.3209 €
*incl. VAT plus shipping costs
Subject to prior sale
Aligator clip, MA 2 VA BL, Hirschmann Test & Measurement
The MA 2 VA BL is a miniature alligator clip with high strength insulation and 2 mm socket connection. Jaws and spring in stainless steel. The flat part of the jaws (fine wire section) allows a secure contact to be made when clamping even the thinnest wires. This product is capable of clamping flat components (soldering eyes) and wires up to a maximum diameter of 4 mm.

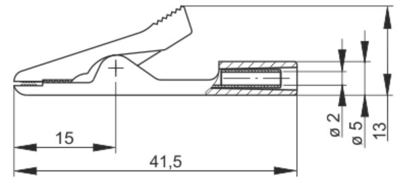

Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 4 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 6 A | |
| Rated category | CAT O | |
| Length | 41.5 mm | |
| Contact material | stainless steel | |
| Connection | socket 2 mm | |
| Colour | blue |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
