930317801 | Hirschmann Test & Measurement
Miniature alligator clip, red, max. 4 mm, L 41.5 mm, CAT O, socket 2 mm, 930317801
Unit Price (€ / pc.)
1.2852 € *
Available: 202 pcs.
Available in 6 Days: 4,250 pcs. - if ordered today
Total Price:
1.29 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2852 €
50 pcs.
1.1543 €
100 pcs.
1.0948 €
500 pcs.
1.0234 €
1000 pcs.
0.9639 €
*incl. VAT plus shipping costs
Subject to prior sale
Aligator clip, MA 1 RT, Hirschmann Test & Measurement

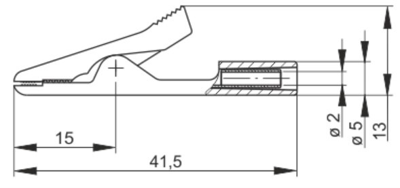

The MA 1 RT is a miniature alligator clip with high strength insulation and nickel-plated brass/bronze jaws. The part of the jaws (fine wire section) allows a secure contect to be made when clamping even the thinner wire. This product is capable of clamping flat components (soldering eyes) and wire up to a maximum diameter of 4mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 4 mm | |
| Connection | socket 2 mm | |
| Colour | red | |
| Contact material | brass | |
| contact surface | nickel-plated | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 8 A | |
| Length | 41.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
| Original Packaging | Carton with 50 pieces |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
