930126104 | Hirschmann Test & Measurement
Alligator clip, green, max. 6 mm, L 53 mm, CAT O, socket 4 mm, 930126104
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.6898 € *
Available: 22 pcs.
Available in 6 Days: 950 pcs. - if ordered today
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6898 €
10 pcs.
1.6065 €
50 pcs.
1.4399 €
100 pcs.
1.3566 €
500 pcs.
1.1781 €
*incl. VAT plus shipping costs
Subject to prior sale

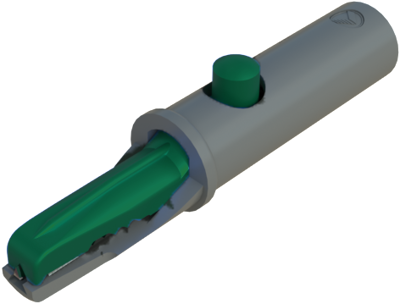

Aligator clip, AK 10 GN, Hirschmann Test & Measurement
The AK 10 GN is a insulated alligator clip with clamping range up to 6 mm bolt diameter and fine wire section for very thin wires. In this product only the lower part of the clip has a tin-plated, brass contact insert with 4 mm diameter socket connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 6 mm | |
| Connection | socket 4 mm | |
| Colour | green | |
| Contact material | brass | |
| contact surface | tin-plated | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 6 A | |
| Length | 53 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Original Packaging | Carton with 50 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
