930126101 | Hirschmann Test & Measurement

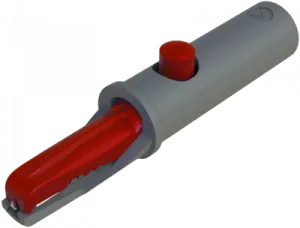

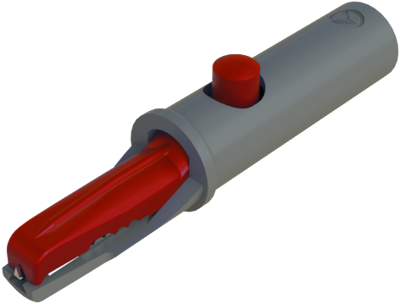

Alligator clip, red, max. 6 mm, L 53 mm, CAT O, socket 4 mm, 930126101

Order No.: 30F300
EAN: 4099889682175
MPN:
930126101
AK 10 RT
Series: AK 10
930126101 Hirschmann Test & Measurement Aligator Clips
Image may differ
Unit Price (€ / pc.)
1.8207 € *
Available: 42 pcs.
Available in 6 Days: 5,400 pcs. - if ordered today
Total Price:
1.82 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8207 €
10 pcs.
1.5351 €
50 pcs.
1.4756 €
100 pcs.
1.4280 €
500 pcs.
1.2733 €
*incl. VAT plus shipping costs
Subject to prior sale

Aligator clip, AK 10 RT, Hirschmann Test & Measurement

The AK 10 RT is a insulated alligator clip with clamping range up to 6 mm bolt diameter and fine wire section for very thin wires. In this product only the lower part of the clip has a tin-plated, brass contact insert with 4 mm diameter socket connection.

Technical specifications
Filter Property Value
clamping force range max. 6 mm
Connection socket 4 mm
Colour red
Contact material brass
contact surface tin-plated
Rated category CAT O
Rated Voltage 30 VAC/60 VDC
Rated current 6 A
Length 53 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85369095
Original Packaging Carton with 50 pieces
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
