930122000 | Hirschmann Test & Measurement
Alligator clip, silver, max. 10 mm, L 49 mm, CAT O, socket 4 mm, 930122000
Unit Price (€ / pc.)
1.5946 € *
Available: 407 pcs.
Available in 6 Days: 3,500 pcs. - if ordered today
Total Price:
1.59 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5946 €
10 pcs.
1.4042 €
100 pcs.
1.2257 €
500 pcs.
1.1781 €
1000 pcs.
1.0829 €
*incl. VAT plus shipping costs
Subject to prior sale

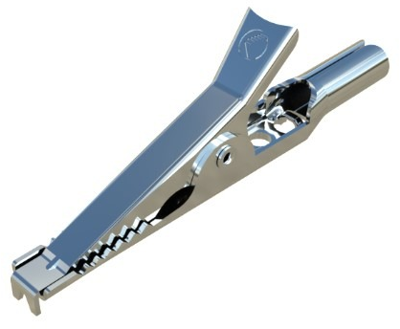

Aligator clip, AGF 30, Hirschmann Test & Measurement
The AGF 30 is a stainless steel alligator clip. This product has a special shape that allows clamping of both extremely fine and thick wires, with maximum bolt diameter 10 mm. Connection type: 4 mm diameter socket rust-proof, acid-proof and non-magnetic.

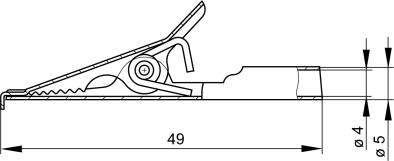

Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 10 mm | |
| Connection | socket 4 mm | |
| Colour | silver | |
| Contact material | stainless steel | |
| contact surface | stainless steel | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 4 A | |
| Length | 49 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Original Packaging | Carton with 100 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
