933406100 | Hirschmann Automation and Control

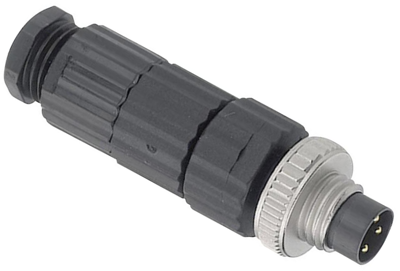

Plug, M8, 3 pole, solder pins, screw locking, straight, 933406100
Unit Price (€ / pc.)
18.0285 € *
Available: 25 pcs.
Total Price:
18.03 € *
Price list
Quantity
Price per unit*
1 pcs.
18.0285 €
10 pcs.
15.8627 €
50 pcs.
14.7798 €
150 pcs.
14.1372 €
500 pcs.
13.4113 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector M 8, type Hirschmann EL.
With screw lock; Rated voltage: 60 V AC/DC. Rated current: 3.0 A (2 A with 0.14 mm²). Contacts: gold-plated, CuZn. Pin diameter: 1.0 mm. Cage clamp strain relief. Conductor cross-section: max. 0.34 mm². Contact block and housing: PA. Degree of protection (IEC 60529): IP 67. Degree of soiling: 3. Housing and contact carrier inflammability: UL 94 V-2. Operating temperatures: - 25 to +70 °C. Cable bushing: M 9.5 x 1, cable entry max. 5.5 mm.
Straight cable plugs, type ELST.
Technical attributes (type, number of poles, screw lock (M 8), cable bushing): ELST 3008 V, 3-pole, M 8, M 9.5
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Pin number | 3 pole | |
| Thread size | M8 | |
| contact surface | gold-plated | |
| Degree of protection (IP) | IP67 | |
| Contact connection | solder pins | |
| Product type | plug | |
| Assembly | PCB mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
