933369100 | Hirschmann Automation and Control

Jack, M8, 4 pole, solder pins, screw locking, angled, 933369100

Order No.: 50F129
EAN: 4099889692259
MPN:
933369100
ELWIKA 4008 V
Series: ELWIKA
933369100 Hirschmann Automation and Control Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
11.0194 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
11.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.0194 €

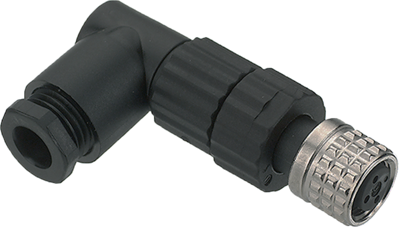

Circular connector M 8, type Hirschmann EL.

With screw lock; Rated voltage: 60 V AC/DC. Rated current: 3.0 A (2 A with 0.14 mm²). Contacts: gold-plated, CuSn. Conductor cross-section: max. 0.34 mm². Contact block and housing: PA. Degree of protection (IEC 60529): IP 67. Degree of soiling: 3. Housing and contact carrier inflammability: UL 94 V-2. Operating temperatures: - 25 to +70 °C. Cable bushing: M 9.5 x 1, cable entry max. 5.5 mm.

Angled cable sockets, type ELWIKA.

Technical attributes (type, number of poles, screw lock (M 8), cable bushing): ELWIKA 4008 V, 4-pole, M 8, M 9.5

Technical specifications
Filter Property Value
Contact connection solder pins
Degree of protection (IP) IP67
Orientation angled
Assembly PCB mounting
Additional parts equipped
Pin number 4 pole
Type of locking screw locking
contact surface gold-plated
Thread size M8
Product type jack
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
