933367100 | Hirschmann Automation and Control

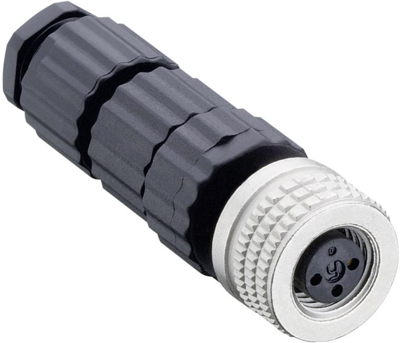

Jack, M8, 4 pole, solder pins, screw locking, straight, 933367100
Unit Price (€ / pc.)
12.7211 € *
Available: 55 pcs.
Total Price:
12.72 € *
Price list
Quantity
Price per unit*
1 pcs.
12.7211 €
10 pcs.
11.1860 €
50 pcs.
10.4363 €
150 pcs.
9.9722 €
500 pcs.
9.4724 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector M 8, type Hirschmann EL.
With screw lock; Rated voltage: 60 V AC/DC. Rated current: 3.0 A (2 A with 0.14 mm²), Contacts: gold-plated, CuSn. Conductor cross-section: max. 0.34 mm². Contact block and housing: PA. Degree of protection (IEC 60529): IP 67. Degree of soiling: 3. Housing and contact carrier inflammability: UL 94 V-2. Operating temperatures: - 25 to +70 °C. Cable bushing: M 9.5 x 1, cable entry max. 5.5 mm.
Straight cable sockets, type ELKA.
Technical attributes (type, number of poles, screw lock (M 8/M12), cable bushing): ELKA 4008 V, 4-pole, M 8, M 9.5
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder pins | |
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| Assembly | PCB mounting | |
| Additional parts | equipped | |
| Pin number | 4 pole | |
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Thread size | M8 | |
| Product type | jack |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
