933165100 | Hirschmann Automation and Control

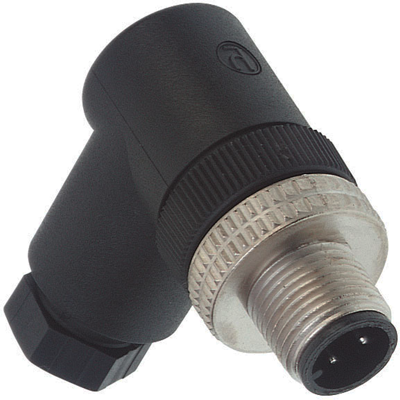

Plug, M12, 4 pole, screw connection, coupling screw, angled, 933165100
Unit Price (€ / pc.)
8.3419 € *
Available: 250 pcs.
Total Price:
417.09 € *
Price list
Quantity
Price per unit*
50 pcs.
8.3419 €
100 pcs.
7.9611 €
500 pcs.
7.6279 €
1000 pcs.
7.1162 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector M 12, type Hirschmann EL.
With screw lock; Rated voltage: 250 V AC/DC. Rated current: 4.0 A. Contacts: gold-plated, CuZn. Pin diameter: 1.0 mm. Cage clamp strain relief. Conductor cross-section: max. 0.75 mm². Contact block and housing: PA. Degree of protection (IEC 60529): IP 67. Degree of soiling: 3. Housing and contact carrier inflammability: UL 94 V-2. Operating temperatures: - 25 to max. +90 °C. Cable bushing: Pg 7, cable outlet: max. 6.8/9.5 mm.
Angled cable plugs, type ELWIST.
Technical attributes (type, number of poles, screw lock (M12), cable bushing): ELWIST 4012 Pg 7, 4-pole, M 12, Pg 7
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| Degree of protection (IP) | IP67 | |
| Coding | A | |
| Orientation | angled | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| Pin number | 4 pole | |
| Type of locking | coupling screw | |
| contact surface | tin-plated | |
| Thread size | M12 | |
| Product type | plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
