932916206 | Hirschmann Automation and Control

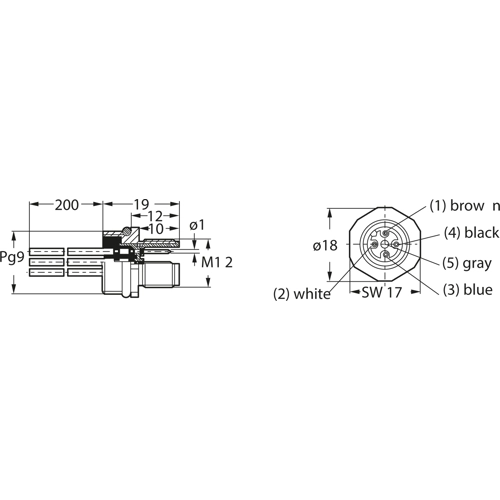

Panel plug, M12, 4 pole, strand connection, screw locking, straight, 932916206
Unit Price (€ / pc.)
14.6251 € *
Available: 106 pcs.
Total Price:
14.63 € *
Price list
Quantity
Price per unit*
1 pcs.
14.6251 €
10 pcs.
12.8758 €
50 pcs.
11.9952 €
150 pcs.
11.4716 €
500 pcs.
10.8766 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor appliance connectors, screw mount, type ELST../EM.
For front-panel mounting, with molded 0.2 m PVC stranded hook-up wire; Conductor cross-section: 0.34 mm², mounting thread Pg or metric. Rated voltage: 4-pole 250 V AC/DC/5-pole 50 V AC/DC. Rated current: 4.0 A. Degree of protection (IEC 60529): IP 67. Contact carrier/housing: PA/CuZn/Ni, O-ring seal included. Sealing material type ELST/EM12: NBR/Viton. The other electrical and mechanical values conform to specifications at the beginning of the series.
Technical attributes (type, mounting thread, number of poles, contact finish): ELST 412 Pg 9 Sn, Pg 9, 4–pole, tinned
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 0.2 m, PVC | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | tin-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
