934130100 | Hirschmann Automation and Control

Circular connector for line voltage, 6-pole + PE, type Hirschmann CA 6.

Robust. The dimensions, size, pole arrangements and contact type are compatible to circular connector series of other brands; Housing: made of impact resistant, glass fiber-reinforced plastic (black). Mounting: vibration-proof screw mounting with interlocking ring. Degree of protection to IEC 60529: IP 67. Degree of soiling: 3. Rated voltage: 250 V AC/DC. Rated current: 10 A. Contact resistance: 5.0 mohm. Cable gland: M 22 x 2. Pin diameter: 1.5 mm. Contact finish: silver. Type of connection: solder terminals. Conductor cross-section: max. 0.75 mm². Operating temperatures: –40 to +90 °C. Combustibility to UL standard 94 V-0. Certifications: VDE, UL.

Cable plugs, straight and angled, type CA 6.

With integrated strain relief, suitable for cable diameters from 6.0 to 12 mm.

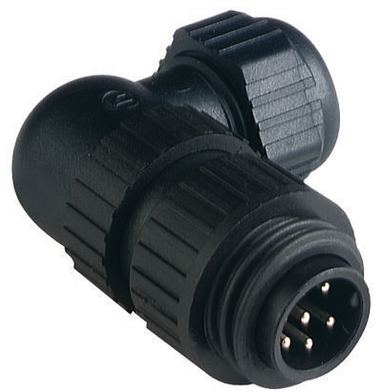

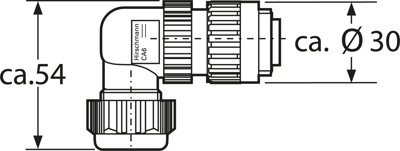

Type: CA 6 W LS, cable plug, angled
