933068100 | Hirschmann Automation and Control

Jack, 17 pole, solder cup, screw locking, straight, 933068100

Order No.: 72F1076
EAN: 4099889741391
MPN:
933068100
CM 06 EA 20-29 S
Series: CM

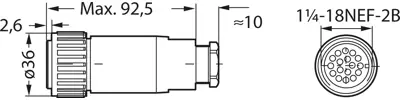

933068100 Hirschmann Automation and Control Other Circular Connectors Image 1
933068100 Hirschmann Automation and Control Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
25.7278 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
25.73 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
25.7278 €

Circular connector to MiL-C 5015 or VG 95 342, type Hirschmann CM.

Robust, vibration-proof, impact-resistant, for ultimate stress, screwable version; Pin diameter: 1.6 mm. Rated voltage: 50 V AC/DC. Contact resistance: <5.0 mohm. Material housing/ contact block: PA 66-GF 25. Contact finish: silver. Inflammability class: UL 94 V-1. Housing color: black. Connection type: solder contacts. Degree of protection (IEC 60529): IP 67. Degree of soiling: 3. Operating temperatures: –40 to +90 °C. Mounting surface temperature: max. 100 °C.

Cable sockets, straight, 17-pole, type CM 06 EA 20-29S.

Cable diameters: 12 to 14 mm. Conductor cross-section: max. 1.5 mm². Cable gland: Pg 16. Cable strain relief: clamping cage. Housing size: 20. Rated current: 4.0 A.

Type: CM 06 EA 20–29S, cable socket

Technical specifications
Filter Property Value
Contact connection solder cup
Shell Material PA
Cable diameter 12 to 14 mm
Orientation straight
Version jack
Pin number 17 pole
Type of locking screw locking
contact surface silver-plated
Cable cross-section 1.5 mm²
Logistics
Property Value
Country of origin HU
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
