933062100 | Hirschmann Automation and Control

Panel plug, 14 pole, solder cup, screw locking, straight, 933062100

Order No.: 72F1075
EAN: 4099889741384
MPN:
933062100
CM 02 E 20-27 P
Series: CM

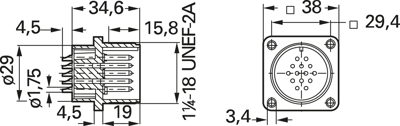

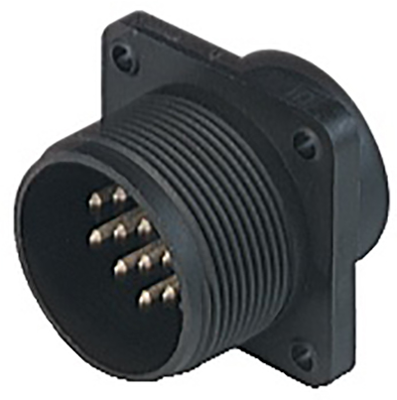

933062100 Hirschmann Automation and Control Other Circular Connectors Image 1
933062100 Hirschmann Automation and Control Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.8306 € *
Available: 100 pcs.
Total Price:
6.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.8306 €

Circular connector to MiL-C 5015 or VG 95 342, type Hirschmann CM.

Robust, vibration-proof, impact-resistant, for ultimate stress, screwable version; Pin diameter: 1.6 mm. Rated voltage: 50 V AC/DC. Contact resistance: <5.0 mohm. Material housing/ contact block: PA 66-GF 25. Contact finish: silver. Inflammability class: UL 94 V-1. Housing color: black. Connection type: solder contacts. Degree of protection (IEC 60529): IP 67. Degree of soiling: 3. Operating temperatures: –40 to +90 °C. Mounting surface temperature: max. 100 °C.

Chassis plugs, 14-pole, type CM 02 E 20-27P.

With flange; Conductor cross-section: max. 1.5 mm². Housing mount: screws. Housing size: 20. Rated current: 10 A.

Type: CM 02 E 20-27P, chassis plug

Technical specifications
Filter Property Value
Contact connection solder cup
Shell Material PA
Cable diameter 12 to 14 mm
Orientation straight
Assembly flange mounting
Version flange plug
Pin number 14 pole
Type of locking screw locking
contact surface silver-plated
Cable cross-section 1.5 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
