932322100 | Hirschmann Automation and Control

Socket, 4 pole, screw connection, screw locking, straight, 932322100

Order No.: 50F402
EAN: 4099889725612
MPN:
932322100
CA 3 GS
Series: CA

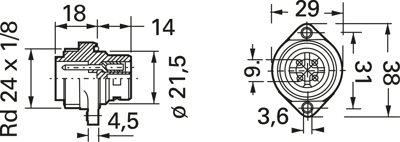

932322100 Hirschmann Automation and Control Other Circular Connectors Image 1
932322100 Hirschmann Automation and Control Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.6763 € *
Available: 238 pcs.
Total Price:
5.68 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6763 €
10 pcs.
4.9861 €
100 pcs.
4.3911 €
250 pcs.
4.2126 €
1000 pcs.
3.9270 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular power connector, 3-pole + PE, type Hirschmann CA 3.

Robust. Dimensions, size, pole arrangements and the type of terminals are compatible with circular connector series of other brands; Housing: impact resistant, glass fiber-reinforced plastic (black). Mounting: vibration-proof with interlocking ring. Degree of protection to IEC 60529: IP 67. Degree of soiling: 3. Rated voltage: 400 VAC, 250 VDC. Rated current: 16 A AC/10 A DC. Contact resistance: 3.0 mohm. Cable gland: M 22 x 2. Pin diameter: 2.0 mm. Contact finish: silver. Type of connection: screw terminals. Conductor cross-section: max. 2.5 mm². Operating temperatures: –40 to +90 °C. Inflammability to UL standard 94 V-0. Certifications: VDE, UL.

Chassis plugs with flange, type CA 3 GS.

Type: CA 3 GS, chassis plug

Technical specifications
Filter Property Value
Pin number 4 pole
Shell Material brass
Cable cross-section 0.5-2.5 mm²
Version socket
Assembly flange mounting
contact surface silver-plated
Orientation straight
Type of locking screw locking
Contact connection screw connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin HU
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
