931351517 | Hirschmann Automation and Control

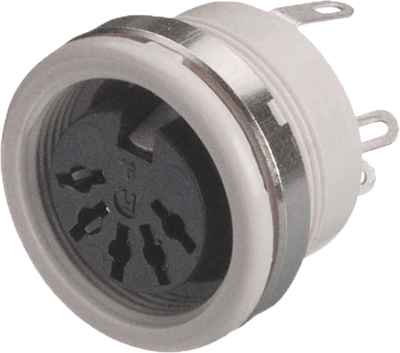

Panel socket, 7 pole, solder cup, screw locking, straight, 931351517

Order No.: 70F6901
EAN: 4099889739701
MPN:
931351517
MAB 7100 S GR
Series: MAB
931351517 Hirschmann Automation and Control Other Circular Connectors
Image may differ

Not suitable for new designs - Last time buy manufacturer: 06.30.2024

Unit Price (€ / pc.)
5.117 € *
Available: 168 pcs.
Total Price:
5.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.117 €

DIN audio connector, plastic, type Hirschmann MA.

To EN 60130-09 and DIN 45329, solder terminals for conductors to max. 0.34 mm²; Contacts: tinned brass.Contact block: PA 66 to UL 94 V-2. Rated voltage: 34 V AC/DC. Rated current: 4.0 A. Degree of protection (IEC 60529): IP 30. Operating temperatures: - 20 to +60 °C.

DIN audio panel jacks, with screw lock, type MAB.

Panel jack with screw lock. Housing material: PE.

Type: MAB 7100 S, 7 - pole, gray

Technical specifications
Type of locking screw locking
Assembly panel mounting
Contact connection solder cup
Cable cross-section 0.34 mm²
Pin number 7 pole
Version DIN panel socket
Additional parts equipped
Shell Material plastic
Orientation straight
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
